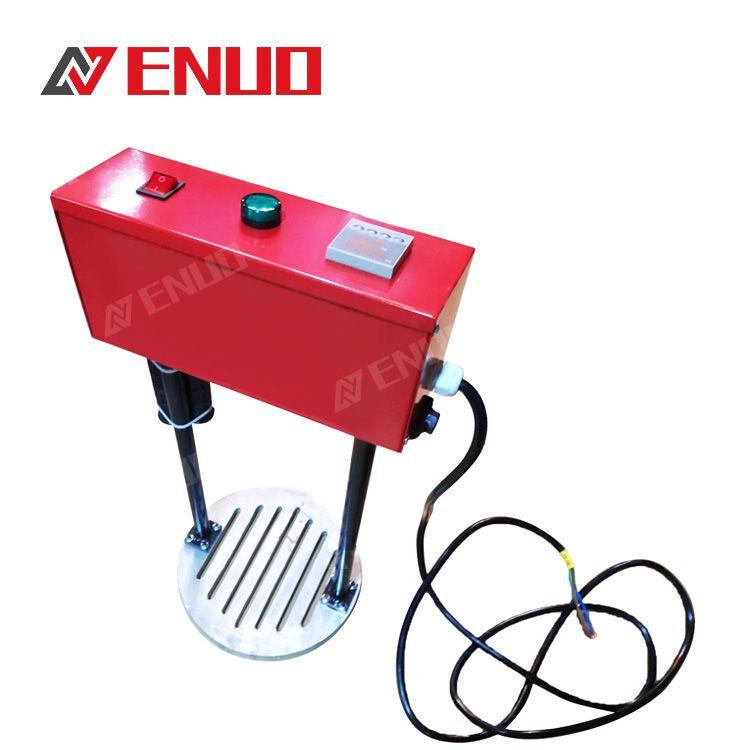

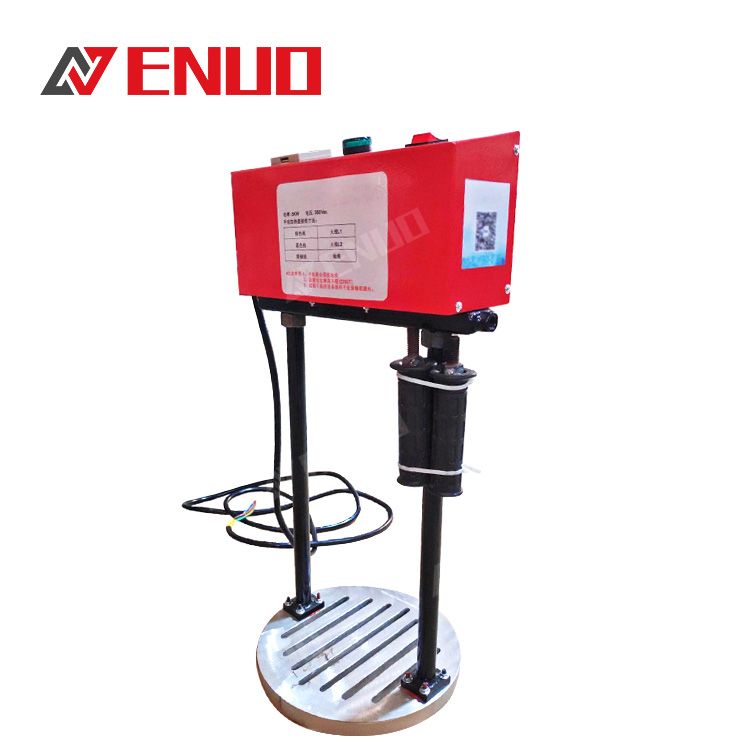

ECM-RD20 Portable heater

ECM-RD20 portable immersion heater is designed to heat up the rubber bituminous waterproof coating materials to required application temperature at water proofing works for roof and base.

  • Model: ECM-RD20
  • Tank volume: 10 kg
  • Chassis total weight: 650x300x650mm

crack sealing machine


ECM-RD20 portable immersion heater is designed to heat up the rubber bituminous waterproof coating materials to required application temperature at water proofing works for roof and base.


Features

1.    Cast aluminum heating plate, heat up and melt material quickly and uniformly, less heat loss.

2.    Placed in the drum directly to heat up the material, can raise melting efficiency working together with our decanter.

3.    15-18 minutes to melt to application temperature (time may vary among different materials).

4.    One-button smart operation, simple and convenient.

5.    Intelligent temperature control, indicator setting, material temperature can be adjusted according to the requirement, safe and reliable, eliminate catching fire.

6.    Used together with our spray painting machine, waterproofing project can be easily achieved.


Specifications

Model

ECM-RD20-2

ECM-RD20-3

Voltage

220V

380V

Power

3KW

5KW

Strut  height

43cm

43cm

clear  height

65cm

65cm

weight

10KG

10KG

Wiring  method

1 live  wire, 1 neutral wire, 1 earth wire

2 live  wires, 1 earth wire
